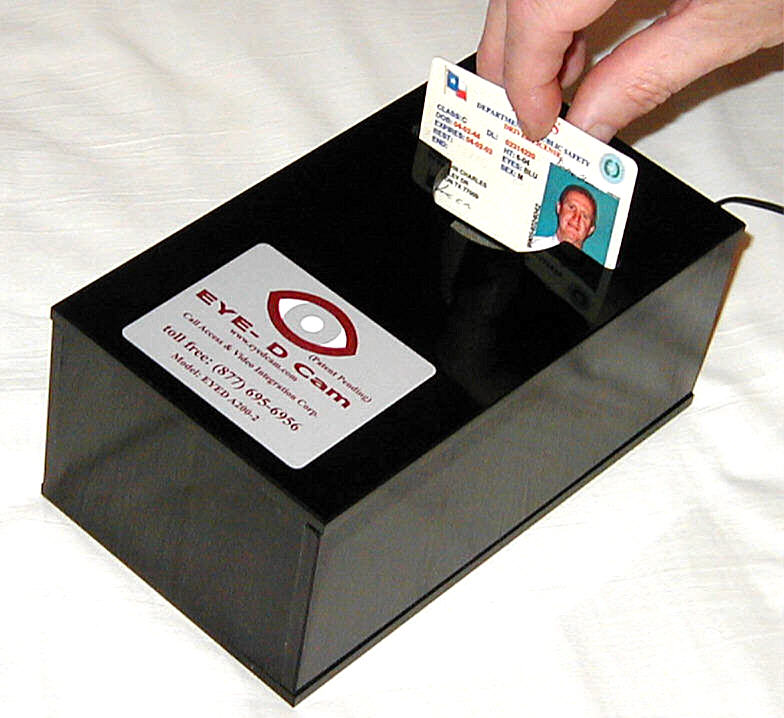

Eye-D Cam Model A200-3
Eye-D Cam Optional
Mounting Bracket-Click Picture for
Specifications.
Switching version of the Eye-D Cam with "External Camera" input
and "Trigger" output.
Price: 630.00 each
This specialized
camera can be used with new or existing CCTV systems or recorders. The camera is
designed to switch a picture from a view of the customer (via an external
camera) to a full resolution picture of their Driver's License and send both videos to
your recording equipment.
WHAT YOU
GET:
- A
full resolution picture of the customer’s ID card.
- A
full resolution picture of your customer.
- Use
of the trigger output allows you to use the event-recording function of your
DVR.
- You
can use an existing port on the customer's DVR.
ADVANTAGES
-
Employees love it. You’ve made it easy for the employee to check and record
the customer’s identification.
-
You have positive evidence to protect yourself in legal investigations and
to prosecute in fraud and theft cases.
-
You have a strong deterrent, when people know that you are recording their
picture and their ID card picture.
CAMERA SPECIFICATIONS
| MODEL |
A200-3 |
| Video |
Color, 430 lines TVL Resolution |
| Format |
NTSC |
| Video Input |
1 Vp-p, 75 ohm unbalanced |
| Video Output |
1 Vp-p, 75 ohm unbalanced |
| Lighting |
Internal White LED's |
| Power |
- 12vdc, 150 ma, power in.
- Built-in power regulator.
- Built-in polarity reversal protection.
|
| Card Detection |
Photocell card detector. Upon card detection the
switcher timer is activated. |
| Trigger Out |
N/O contact, 200ma, RCA style output jack closes for
seven seconds when a card is detected. |
| Audible Sounder |
Pulsing tone, activates after the card is in the holder
for seven seconds. The tone silences when the card is removed. |
| Timer/switcher |
A seven second timer is activated when a card is
detected. The video switches to a picture of the ID card when the card
is detected. After seven seconds the video is switched to the external
camera. |
| PHYSICAL |
|
| Card Holder |
Holds a standard 3-3/8" x 2-1/8" ID card
(86mm x 54mm.) |
| Humidity |
0-85% Non-Condensing. |
| Temperature |
40 F - 100 F (4.5 C - 38 C) |
| Color |
Matt Black |
| Net Weight |
1 lb. 4 oz (567 g.) |
| Shipping wt. |
4 lb. (1815 g.) |
| Dimensions |
9-1/8" L x 4-5/8" W x 3-7/8" H (230mm x
119mm x 98mm) |
|
A200-3
